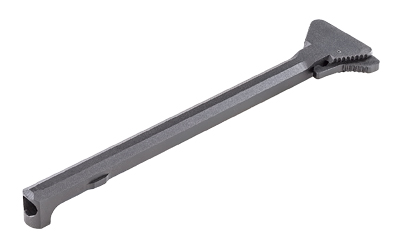

Anderson Manufacturing Packaged Charging Handle

Product Description

The Anderson Manufacturing Packaged Charging Handle is a mil-spec charging handle designed for AR-15 pattern upper receivers. This component allows you to manually cycle the bolt carrier group to chamber a round, clear a malfunction, or lock the action open for inspection and maintenance.

Charging handles are high-touch parts that take repeated stress during weapon manipulation. A mil-spec profile ensures compatibility with standard upper receivers and works with nearly every bolt carrier group on the market.

This charging handle suits builders completing an upper receiver assembly or shooters replacing a worn or damaged factory part. It pairs with any standard AR-15 upper and does not require special cutouts or modifications.

Key Facts

• Product Name: Anderson Manufacturing Packaged Charging Handle
• SKU: ANDM-B2-K027-A000-0P
• Categories: Charging Handles, Upper Receiver Parts, Bolt Carrier Group/Charging Handles
• Compatibility: AR-15 pattern upper receivers with mil-spec dimensions

How AR-15 Charging Handles Work

The charging handle engages the gas key atop the bolt carrier group. When you pull the handle to the rear, it drags the carrier backward, compressing the buffer spring and ejecting any chambered round. Releasing the handle allows the buffer spring to drive the carrier forward, stripping a fresh cartridge from the magazine and seating it in the chamber.

During firing, the charging handle sits in a channel machined into the upper receiver. It does not move with each shot in a properly functioning AR-15. You manipulate it manually only when loading, unloading, or clearing malfunctions.

Mil-spec charging handles use a T-shaped latch mechanism. You press the latch tab to release the handle from its detent before pulling it rearward. This design has been standard for decades and works with all USGI-spec upper receivers.

Choosing a Charging Handle for Your Build

Most AR-15 builds and replacements call for a mil-spec charging handle. Aftermarket ambidextrous and extended-latch models offer ergonomic advantages, but a standard handle delivers the core function at lower cost. If you shoot right-handed and do not use a low-mounted optic that interferes with latch access, a mil-spec handle covers every tactical and recreational need.

Charging handles wear slowly under normal use. Replace yours if the latch no longer holds the handle in battery, if the handle body shows cracks near the gas key channel, or if you feel excessive side-to-side play when the handle is seated. Inspect the roll pin that retains the latch; a sheared pin is a common failure mode after thousands of charging cycles.

When building an upper from parts, install the charging handle after you have torqued the barrel nut and before you install the bolt carrier group. The handle slides into its channel from the rear of the upper receiver. Check that it locks positively into the detent and travels smoothly through its full range of motion.

Buying from Western Sport in Roanoke, TX

Western Sport is a licensed FFL/SOT dealer and gunsmith shop serving North Texas and the DFW area since 2007. Owner and gunsmith Lance Rankin and his team handle transfers, custom builds, and repairs on site. Call 817-393-4000 to confirm specifications, place an order, or discuss your build. You can also browse our full selection of bolt carrier group and charging handle parts and other AR components.

Frequently Asked Questions

Q: Will this Anderson Manufacturing charging handle fit my AR-15 upper receiver?

A: This charging handle is designed for AR-15 pattern upper receivers with mil-spec dimensions. It will fit any standard AR-15 upper, including forged and billet designs that follow USGI specifications. If you have an AR-10 or other large-frame platform, you need a charging handle sized for that receiver.

Q: What is the difference between a mil-spec and an ambidextrous charging handle?

A: A mil-spec charging handle has a single latch tab on the left side of the handle body, accessed with your right hand when the rifle is shouldered. An ambidextrous charging handle has latch paddles or levers on both sides, allowing left-handed shooters or anyone running the rifle from the support side to release the latch without changing hand position. Both perform the same core function of cycling the bolt carrier group.

Q: Can I use this charging handle with any bolt carrier group?

A: Yes, this mil-spec charging handle works with any AR-15 bolt carrier group. The handle engages the gas key, which is standardized across all AR-15 carriers. Compatibility issues between charging handles and bolt carriers are extremely rare in AR-15 platforms.

Q: How do I install a charging handle in an AR-15 upper receiver?

A: Slide the charging handle into the channel at the rear of the upper receiver with the latch facing down. Push it forward until it locks into the detent inside the receiver. To remove it, press the latch tab and pull the handle to the rear until it clears the receiver. Always ensure the rifle is unloaded and the bolt carrier group is removed before installing or removing the charging handle.

Q: When should I replace my AR-15 charging handle?

A: Replace your charging handle if the latch fails to hold the handle in battery, if you see cracks in the handle body near the gas key channel, or if the roll pin that retains the latch is sheared or missing. Excessive side-to-side wobble when the handle is seated can also indicate wear. Most charging handles last tens of thousands of cycles under normal use.

Q: Does Western Sport offer gunsmithing services for AR-15 builds in the DFW area?

A: Yes, Western Sport provides gunsmithing services on site in Roanoke, Texas. Lance Rankin and his team can assemble upper receivers, install components, troubleshoot cycling issues, and complete full custom builds. Call 817-393-4000 to discuss your project and schedule an appointment.
