Magpul MBUS Gen 2 Rear Sight delivers spring-loaded flip-up functionality and dual apertures in a compact, impact-resistant polymer body.

SHARE THIS

Product Description

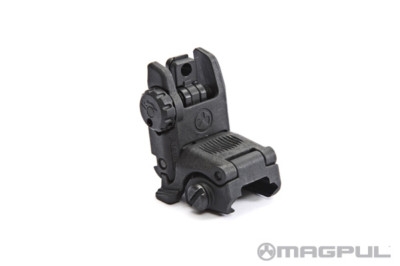

The Magpul MBUS Gen 2 Rear Sight is a spring-loaded, flip-up backup iron sight designed for MIL-STD-1913 Picatinny and STANAG 4694 receiver rails. It provides the same height-over-bore as standard A2 irons and deploys quickly from either side or by pressing the top.

Built from impact-resistant polymer, this rear sight folds flat when not in use and rises under spring tension. Protective wings shield the dual flip apertures, and a detent knob allows precise windage adjustment. Its reduced footprint improves compatibility with optics mounted forward on the rail.

The Gen 2 design places both small and large apertures on the same plane. This eliminates the need to flip the aperture post, speeding transitions between close-range and precision aiming.

Key Facts

  • Weight with hardware: 1.3 oz
  • Height above rail (stowed): approximately 0.51 in
  • Length stowed: 2.6 in
  • Length deployed: 1.5 in
  • Finish: Black
  • Compatibility: MIL-STD-1913 Picatinny/STANAG 4694 receiver rail

How the Gen 2 Differs from the Original MBUS

The Gen 2 rear sight positions both apertures on a single plane. Earlier designs required you to flip the aperture post to switch between peep sizes. The Gen 2 lets you rotate the aperture drum without changing elevation, which saves time during rapid sight picture adjustments.

The reduced profile also clears more optic bodies when folded. If you run a red dot or low-power variable optic, the Gen 2 stows below most objective bells and turret housings.

Pairing with Optics and Other Iron Sights

Because the MBUS Gen 2 Rear Sight maintains A2 height-over-bore, it co-witnesses with standard front iron sights at the same height. Pair it with a front sight of matching height to maintain zero when your optic is off or out of battery.

The spring-loaded detent holds the sight upright under recoil but allows it to fold under impact. This protects both the sight and your optic if the rifle is dropped or bumped. Browse our full selection of iron and night sights to find compatible front sight options.

Installation and Windage Adjustment

The sight clamps directly to any MIL-STD-1913 Picatinny or STANAG 4694 rail without tools beyond what is needed to tighten the crossbolt. Once mounted, turn the detent knob on the right side of the sight body to adjust windage. Each click moves point of impact in small, repeatable increments.

Deployment is ambidextrous. Press the lever on either side or push down on the top of the sight body. Spring pressure snaps it upright and holds it in place until you manually fold it or an impact forces it down.

Ordering from Western Sport

Order online and it ships straight to your door. Western Sport has been a licensed FFL/SOT dealer since 2007, and everything we sell carries the full manufacturer warranty. Questions before you order? Send us a message.

Frequently Asked Questions

Q: Does the Magpul MBUS Gen 2 Rear Sight fit all Picatinny rails?

A: Yes, it clamps to any MIL-STD-1913 Picatinny or STANAG 4694 receiver rail. The crossbolt design locks the sight in place without requiring a proprietary interface.

Q: What is the difference between the Gen 2 and the original MBUS rear sight?

A: The Gen 2 places both the small and large apertures on the same plane, eliminating the need to flip the aperture post. It also has a reduced stowed profile for better clearance with optics.

Q: How do you adjust windage on the MBUS Gen 2?

A: Turn the detent knob on the right side of the sight body. Each click moves the point of impact incrementally, and spring pressure holds the setting in place.

Q: Can I use the MBUS Gen 2 Rear Sight with a red dot optic?

A: Yes, the sight folds to approximately 0.51 inches above the rail, which clears most red dot optics. When deployed, it co-witnesses at A2 height if your red dot is mounted at lower-third or absolute co-witness height.

Q: Is the MBUS Gen 2 ambidextrous?

A: Yes, you can deploy the sight by pressing the lever on either the left or right side, or by pushing down on the top of the sight body.

Q: Will the MBUS Gen 2 Rear Sight hold zero after being folded and redeployed?

A: The detent mechanism returns the sight to the same upright position each time, and the windage knob holds its setting. Confirm zero after installation, then verify periodically as part of routine maintenance.

Additional information

Weight 0.4 lbs
Features

Impact resistant polymer construction provides light weight and resists operational abuse Spring-loaded flip up sight easily activated from either side or by pressing the top Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc. Clamps to any MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons Protective wings shield the dual flip apertures Detent knob easily and positively adjusts windage Weight, w/ hardware: 1.3 oz. Height above rail, stowed: ~0.51 in. Length, stowed: 2.6 in. Length, deployed: 1.5 in. Reduced size for greater optics compatibility Both small and large apertures are on the same plane Made in U.S.A.
