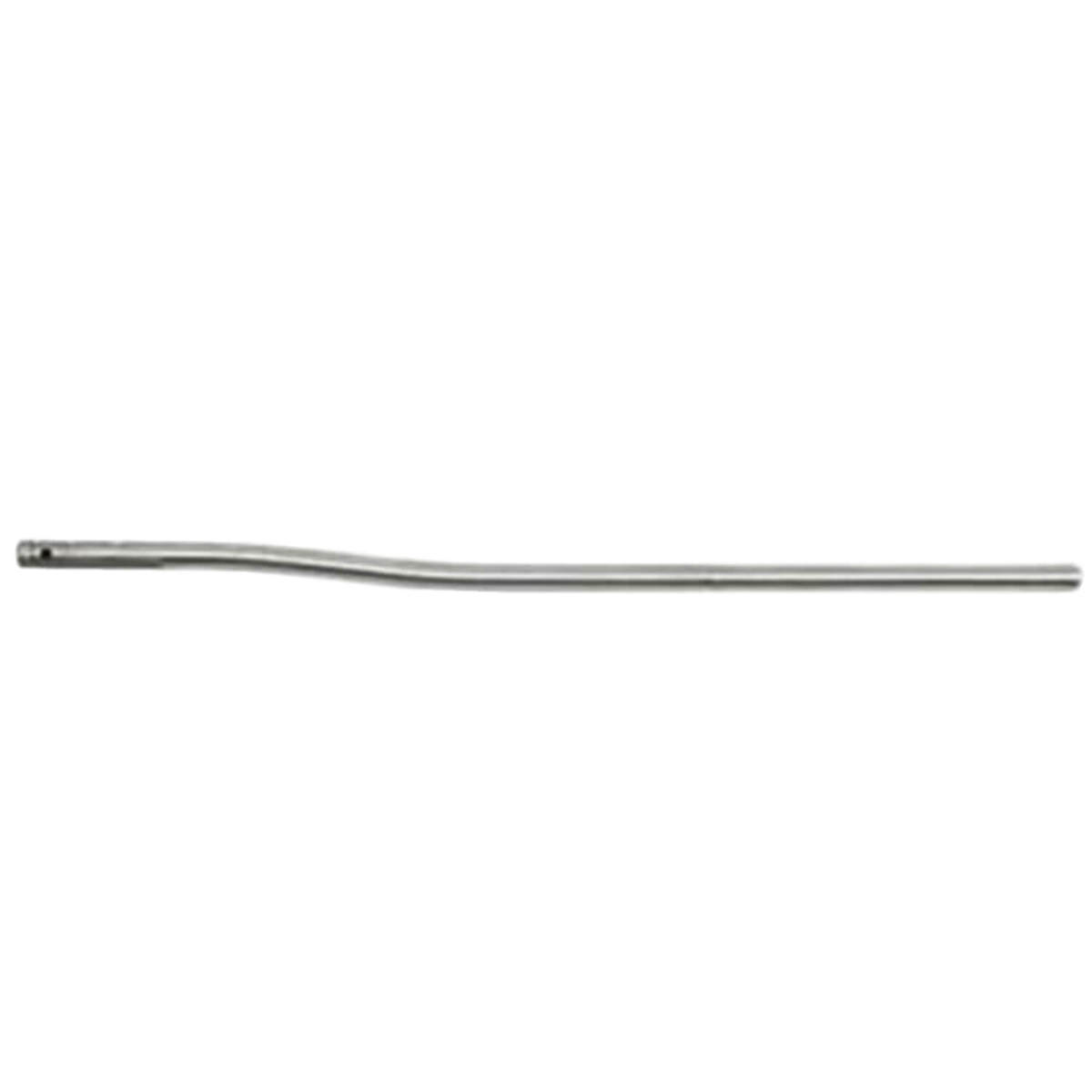

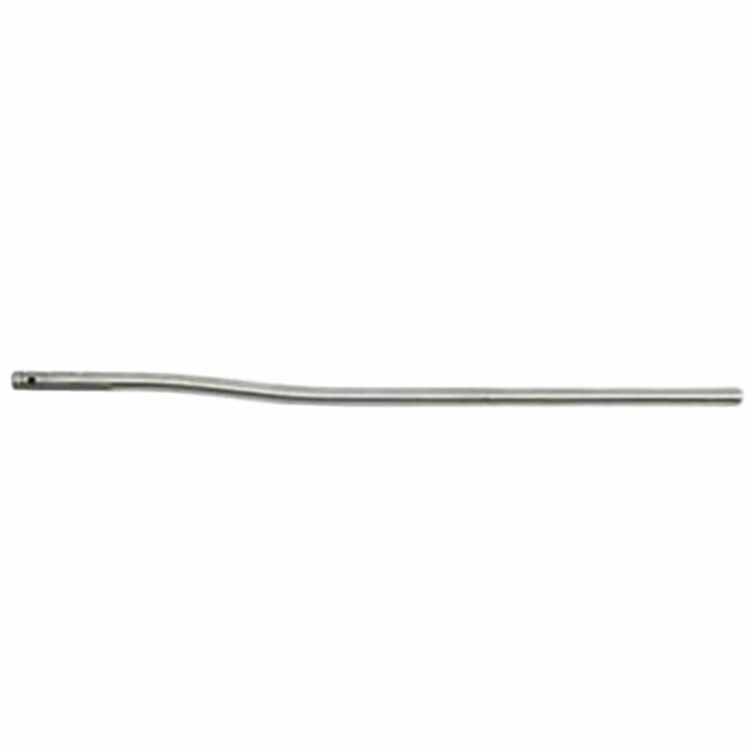

Odin Works Pistol Length Gas Tube

Product Description

The Odin Works Pistol Length Gas Tube is a replacement gas tube designed for AR-15 pistol-length gas systems. This component channels gas from the barrel’s gas port to the bolt carrier group, cycling the action during firing. Builders and gunsmiths use it when assembling uppers or replacing worn or damaged gas tubes in pistol configurations.

Pistol-length gas systems measure approximately 4 inches from the receiver to the gas port. They are commonly found on AR pistols with barrel lengths under 10 inches. The gas tube is a critical link in the direct impingement system.

Key Facts

• Brand: Odin Works
• Product Name: Odin Works Pistol Length Gas Tube
• Firearm Type: Pistol
• SKU: OW-GT-PISTOL

How Pistol Length Gas Tubes Work

Gas tubes in AR-15 platforms sit above the barrel, held in place by the gas block. When a round fires, expanding gas travels through the barrel’s gas port into the tube. That gas then pushes the bolt carrier rearward, ejecting the spent case and chambering a new round.

Pistol-length systems deliver gas faster due to the shorter distance from chamber to gas port. This quick cycle is necessary for reliable function in compact builds. The gas tube must maintain an airtight seal at both the gas block and the carrier key to function correctly.

Installation and Compatibility

Installing a gas tube requires removing the handguard and gas block to access the barrel nut area. The tube slides through the gas block and locks into the upper receiver’s gas tube channel. A roll pin secures the tube to the gas block.

Pistol-length gas tubes are specific to pistol-length gas blocks and barrel configurations. They will not function correctly if paired with carbine, mid-length, or rifle-length systems. Verify your barrel’s gas system length before ordering. For complete upper receiver parts, Western Sport stocks components for full builds and repairs.

When to Replace a Gas Tube

Gas tubes can fail due to heat stress, corrosion, or installation damage. Bent tubes cause cycling issues, including failure to eject or short-stroking. Carbon buildup inside the tube rarely causes problems, but physical damage requires replacement.

During routine upper disassembly, inspect the tube for bends or cracks near the gas block pin hole. If the tube does not align straight from gas block to receiver, replace it. A damaged gas tube will prevent reliable function regardless of other component quality.

Buying from Western Sport in Roanoke, TX

Western Sport is a licensed FFL/SOT dealer serving North Texas and the DFW area since 2007. Owner and gunsmith Lance Rankin provides on-site gunsmithing, transfers, and technical guidance. Call 817-393-4000 with questions about compatibility or to place an order.

Frequently Asked Questions

Q: Will this Odin Works gas tube fit my AR pistol upper?

A: This gas tube fits AR-15 uppers configured for pistol-length gas systems. Confirm your barrel and gas block are pistol-length before ordering. If you are unsure of your gas system length, call 817-393-4000 for assistance.

Q: What is the difference between pistol and carbine length gas tubes?

A: Pistol-length gas tubes are shorter and designed for barrels under 10 inches with gas ports closer to the chamber. Carbine-length tubes are longer and pair with barrels typically 10 to 18 inches. The two are not interchangeable.

Q: Can I reuse a gas tube when changing gas blocks?

A: You can reuse a gas tube if it is not bent or damaged and the roll pin hole is intact. Inspect the tube carefully during disassembly. Any visible bend or stress crack means the tube should be replaced to ensure reliable cycling.

Q: Do I need gunsmithing tools to install this gas tube?

A: Installing a gas tube requires a roll pin punch set, a hammer, and tools to remove your handguard and gas block. The roll pin must be driven cleanly to avoid bending the tube. Lance Rankin offers gunsmithing services in Roanoke if you prefer professional installation.

Q: How do I know if my gas tube is causing cycling problems?

A: A bent or blocked gas tube will cause failure to eject, short-stroking, or failure to lock back on the last round. Remove the tube and look down its length toward a light source. Any kink or obstruction is visible. A straight, clear tube rules out the gas tube as the problem source.

Q: Can I order this gas tube for pickup at Western Sport?

A: Western Sport is located in Roanoke, Texas, and serves the DFW area. For current ordering options and lead times, call 817-393-4000. Our team can answer questions about AR parts and help coordinate your build or repair.
