Odin Works Adjustable Low Profile Gas Block

Product Description

The Odin Works Adjustable Low Profile Gas Block is a tunable AR-15 gas block designed to fine-tune gas flow for reduced recoil, less carrier speed, and suppressed-fire reliability. It mounts beneath most free-float handguards without adding bulk or weight to your rifle’s profile.

Adjustable gas blocks let you dial in gas pressure to match your ammunition, suppressor, and shooting conditions. Too much gas accelerates bolt carrier wear and felt recoil; too little causes short-stroking and extraction failures. This block gives you control over that balance.

The low-profile design fits under slim handguards and stays out of sight. The adjustment screw is accessible through the top of most rails, so you can tune gas pressure without removing the handguard or taking the rifle apart.

Key Facts

• Product Name: Odin Works Adjustable Low Profile Gas Block
• SKU: OW-GB-ADJ
• Design: Low-profile adjustable AR-15 gas block
• Adjustment: Tool-accessible screw for gas flow tuning

How the Odin Works Adjustable Gas Block Works

An adjustable gas block restricts or opens the gas port drilled into your barrel. When you fire, powder gases push the bullet down the bore and exit through that port into the gas tube, driving the bolt carrier rearward. Standard fixed blocks deliver whatever gas the barrel port allows—often more than needed, especially with modern ammunition or a suppressor attached.

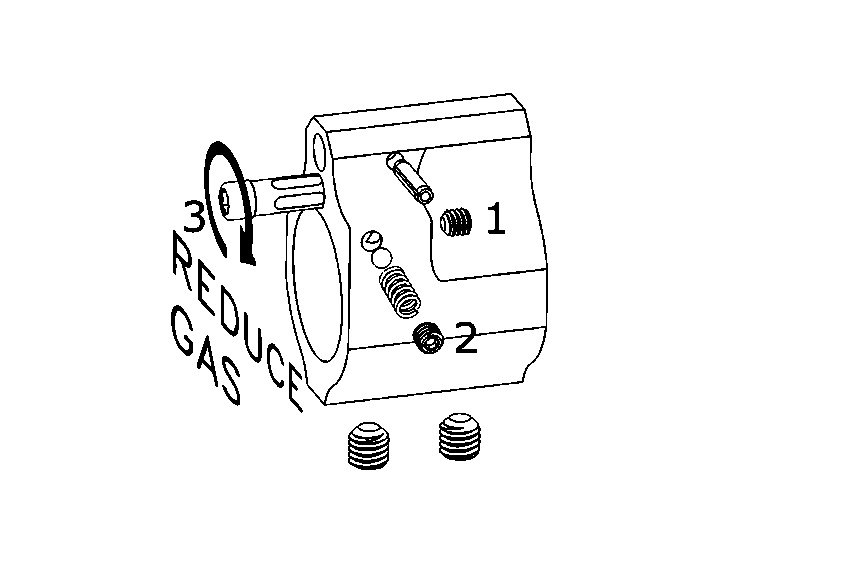

The Odin Works gas block lets you reduce gas flow incrementally. Turn the adjustment screw clockwise to restrict gas, counterclockwise to open it. Start wide open, then dial down until the rifle locks back on an empty magazine reliably. That setting minimizes gas blowback, muzzle rise, and wear on the bolt carrier group without sacrificing function.

Suppressor users benefit most. A can traps gas at the muzzle and sends extra pressure back through the gas system, often over-gassing the action and venting hot gas into your face. An adjustable block brings pressure back to normal levels even with the suppressor mounted.

Installing an Adjustable Gas Block on Your AR Upper

The Odin Works low-profile gas block replaces the standard fixed block on any AR-15 barrel. Remove your handguard, pull off the old block, slide the new one onto the barrel journal, align it over the gas port, and secure it with set screws. Exact installation torque and alignment depend on your barrel specs, which you should confirm before starting.

Most free-float handguards provide clearance for low-profile blocks and leave the adjustment screw accessible through a slot or vent hole in the top rail. Check handguard fit before ordering if you run a particularly slim or thick-walled tube. Our upper receiver parts section carries compatible blocks, tubes, and barrel hardware if you’re building or upgrading a complete upper.

Odin Works Gas Block vs. Standard Fixed Blocks

Fixed gas blocks are simpler and lighter, and they work fine when your rifle runs one load unsuppressed under consistent conditions. If you reload, shoot suppressed, or switch between heavy and light bullets, a fixed block forces you to accept whatever gas curve the barrel delivers.

The Odin adjustable gas block adds tunability without adding visible bulk. You set it once per configuration, lock it down, and leave it. The adjustment range is wide enough to accommodate suppressed and unsuppressed fire, different buffer weights, and varying ammunition pressures. Once dialed in, it requires no further attention unless you change your setup.

Fixed blocks cost less and weigh less. Adjustable blocks cost more and add a failure point if the set screws back out or the adjustment screw strips. Loctite and periodic inspection solve that problem for most shooters who value the tuning capability.

Ordering from Western Sport

Order online and it ships straight to your door. Western Sport has been a licensed FFL/SOT dealer since 2007, and everything we sell carries the full manufacturer warranty. Questions before you order? Send us a message.

Frequently Asked Questions

Q: What barrel diameter fits the Odin Works adjustable gas block?

A: Send us a message to confirm barrel journal diameter and set screw compatibility before ordering. Odin Works makes gas blocks in several bore sizes, and using the wrong size causes gas leaks or unsafe pressure.

Q: Can I adjust the Odin adjustable gas block with the handguard installed?

A: Most free-float handguards leave the adjustment screw accessible through a slot or ventilation hole in the top rail. Solid or very thick handguards may require removal for adjustment, so check handguard clearance before installation.

Q: How do I tune the Odin Works gas block for suppressed shooting?

A: Start with the screw backed all the way out, fire a full magazine, and confirm the bolt locks back empty. Turn the screw clockwise one quarter-turn at a time until the rifle just barely locks back reliably, then back it out one eighth-turn for a safety margin.

Q: Does the Odin Works tunable gas block work with carbine and mid-length gas systems?

A: Yes, adjustable gas blocks function on any direct-impingement AR-15 gas system length as long as the block bore diameter matches your barrel journal. Gas system length affects timing and gas volume, but the adjustment screw compensates for those differences.

Q: Will an adjustable gas block reduce recoil on my AR-15?

A: Yes, reducing gas flow slows bolt carrier velocity, which reduces felt recoil and muzzle rise. The effect is most noticeable on lightweight carbines and during rapid fire, where excessive gas causes the muzzle to climb between shots.
