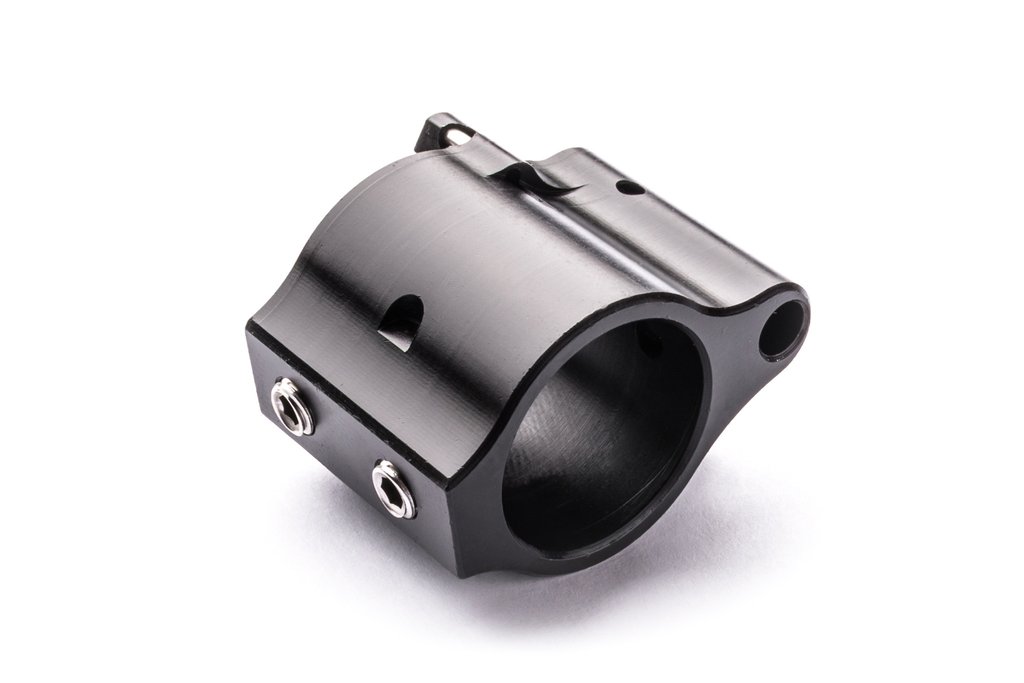

Superlative Arms .750″ Adjustable Gas Block Bleed Off – Solid Melonited

Product Description

The Superlative Arms .750″ Adjustable Gas Block Bleed Off – Solid Melonited is a .750-inch adjustable gas block designed for AR-15 rifles that lets you tune gas flow using a bleed-off system rather than restricting the gas port.

Bleed-off gas blocks vent excess gas forward through the adjustment screw instead of trapping it in the bolt carrier. That lowers chamber pressure and carrier speed more cleanly than restrictive blocks, which improves reliability with suppressed rifles and over-gassed factory setups.

This model fits standard .750-inch gas journals and gives you fine control over cycling speed without the carbon buildup that restrictive designs can cause inside the gas tube.

Key Facts

• Product Name: Superlative Arms .750″ Adjustable Gas Block Bleed Off – Solid Melonited
• SKU: SA-204165
• Gas Journal Diameter: .750″
• Finish: Solid Melonited

How the Superlative Arms Bleed-Off System Works

Most adjustable gas blocks reduce gas flow by restricting the port with a set screw. The Superlative Arms bleed-off design opens a vent that diverts extra gas forward and away from the bolt carrier. You turn the adjustment screw to control how much gas bleeds off versus how much cycles the action.

This approach keeps carbon and heat out of the upper receiver. It runs cleaner under suppression because the excess pressure escapes before it reaches the bolt. When you add a suppressor, you simply dial back the bleed-off to compensate for the added backpressure, and the rifle cycles normally without battering the carrier or dumping gas into your face.

Bleed-off blocks also simplify tuning for different ammunition loads. You adjust until the bolt locks back reliably on the last round, and the system stays consistent across wide temperature ranges.

Choosing Between Bleed-Off and Restrictive Gas Blocks

Restrictive gas blocks choke down the port and trap more pressure in the system. They work, but they concentrate carbon in the gas tube and can cause short-stroking if you dial them too far closed. Bleed-off blocks give you wider adjustment latitude because venting gas forward is more forgiving than cutting off the supply.

If you plan to suppress the rifle or shoot a wide range of ammunition, bleed-off offers smoother tuning and less fouling. If you need the lightest possible block or never plan to adjust it after the initial setup, a simpler restrictive block may be adequate.

The .750-inch journal diameter is the most common size for AR-15 barrels with mid-length and carbine gas systems. Send us a message to confirm your barrel’s gas journal measurement before ordering if you are unsure.

Installing an Adjustable Gas Block on Your AR Build

Adjustable gas blocks replace the factory fixed block on your barrel. You remove the handguard, knock out the pin or loosen the set screws on the old block, slide it off the gas journal, and install the new block so the gas port in the block aligns exactly with the port drilled in the barrel.

Most builders dimple the barrel at the set screw locations so the screws seat securely and do not shift under recoil. If your barrel is not dimpled, consider having it done or using a clamp-style block instead. Proper alignment is critical because even a slight offset will cause cycling problems or damage the gas tube.

Once installed, you tune the block by starting fully open or fully closed, depending on the design, and adjusting incrementally until the bolt locks back on empty and brass ejects consistently at the same angle. You can find additional gas blocks and upper parts in our catalog.

Ordering from Western Sport

Order online and it ships straight to your door. Western Sport has been a licensed FFL/SOT dealer since 2007, and everything we sell carries the full manufacturer warranty. Questions before you order? Send us a message.

Frequently Asked Questions

Q: What is the difference between the Superlative Arms bleed-off gas block and a standard adjustable block?

A: The Superlative Arms bleed-off gas block vents excess gas forward through the adjustment screw instead of restricting the port, which reduces carbon buildup and lowers pressure more smoothly than restrictive designs. Standard adjustable blocks choke down the gas port with a set screw, which can trap more heat and fouling inside the system.

Q: Will the .750″ Superlative Arms gas block fit my AR-15 barrel?

A: The .750-inch gas block fits barrels with a .750-inch gas journal diameter, which is the most common size for mid-length and carbine-length gas systems on AR-15 barrels. Measure your barrel’s gas journal with calipers or send us a message if you need help confirming fitment before you order.

Q: How do I tune a bleed-off adjustable gas block after installation?

A: Start with the adjustment screw in the recommended starting position for your model, fire a few rounds, and turn the screw incrementally until the bolt locks back on empty and ejection is consistent. Bleed-off blocks adjust by venting more or less gas forward, so you dial in the setting that balances reliable cycling with minimal felt recoil and wear on the carrier.

Q: Can I use the Superlative Arms adjustable gas block with a suppressor?

A: Yes, adjustable gas blocks are commonly used with suppressors to compensate for the added backpressure that comes with suppressed shooting. The bleed-off design vents excess gas forward, which keeps the rifle cleaner and reduces gas blowback into the receiver when you add a can.

Q: Does this gas block require a barrel dimple for installation?

A: Many builders dimple the barrel at the set screw locations to prevent the gas block from shifting under recoil, though it is not always required. Send us a message to discuss installation options and whether your barrel should be dimpled before you mount the block.
